Mice humanized by syntenic replacement with full-length NLRP3 disease-associated variants model the clinical cryopyrinopathy continuum
John N. Snouwaert, MyTrang Nguyen, Christopher A. Gabel, Ivona Aksentijevich, Jenny P.-Y. Ting, Beverly H. Koller
John N. Snouwaert, MyTrang Nguyen, Christopher A. Gabel, Ivona Aksentijevich, Jenny P.-Y. Ting, Beverly H. Koller
View: Text | PDF
Research Article Genetics Immunology Inflammation

Mice humanized by syntenic replacement with full-length NLRP3 disease-associated variants model the clinical cryopyrinopathy continuum

  • Text
  • PDF
Abstract

Next-generation sequencing technologies are increasingly used to diagnose genetic disorders, particularly immunological diseases with broad and overlapping immune dysregulation. Cryopyrin-associated periodic syndromes (CAPS) are caused by gain-of-function mutations in NLRP3 and include 3 autoinflammatory diseases spanning a continuum of severity: familial cold autoinflammatory syndrome (FCAS), Muckle-Wells syndrome (MWS), and neonatal-onset multisystem inflammatory disease (NOMID). Linking NLRP3 variants to protein dysfunction and clinical phenotype remains challenging because of genetic modifiers and environmental factors. We report the generation and phenotyping of 5 mouse lines expressing either the common human NLRP3 allele or 1 of 4 CAPS mutations spanning the disease spectrum from FCAS to NOMID. In these lines, the murine Nlrp3 locus is replaced by syntenic integration of the human NLRP3 locus, yielding 1 line with the common allele and 4 lines each carrying a distinct CAPS mutation. Unlike models in which a human mutation is introduced into the mouse protein, these lines recapitulate the spectrum of disease severity observed in humans. These findings support a model in which evaluation of nonsynonymous mutations in mice is optimized when introduced in the context of the human gene. This suggests that species-specific regulation and/or intramolecular epistasis may impact modeling of disease-associated variants.

Authors

John N. Snouwaert, MyTrang Nguyen, Christopher A. Gabel, Ivona Aksentijevich, Jenny P.-Y. Ting, Beverly H. Koller

×

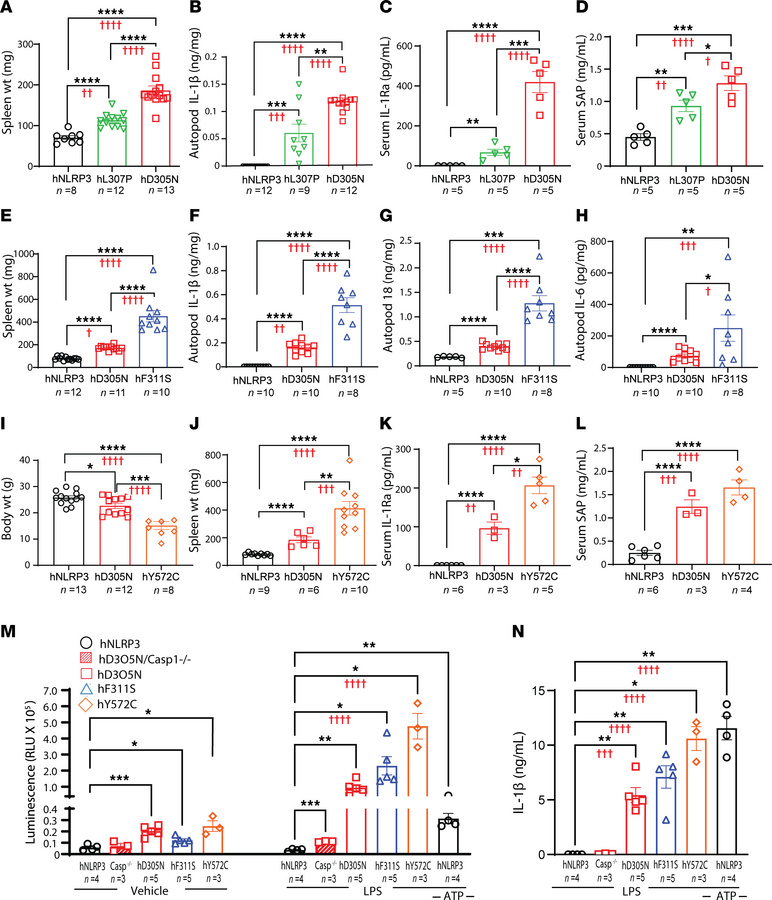

Figure 4

Comparison of inflammation in CAPS mice and primary macrophages homozygous for each mutant allele.

Options: View larger image (or click on image) Download as PowerPoint
Comparison of inflammation in CAPS mice and primary macrophages homozygo...
(A–L) Tissues and fluids were collected at necropsy from mice of the indicated genotype. (A) Spleen weights in D305N and hNLRP3 mice compared with L307P mice. (B) IL-1β levels in autopod homogenates from hNLRP3, D305N, and L307P mice. (C and D) Serum IL-1Ra (C) and SAP (D) measured in hNLRP3, L307P, and D305N mice. (E) Spleen weight of hNLRP3, D305N, and F311S mice. (F–H) IL-1β (F), IL-18 (G), and IL-6 (H) levels in autopod lysates from hNLRP3, D305N, and F311S mice. (I and J) Body weight (I) and spleen weight (J) of hNLRP3, D305N, and Y572C mice at 8–12 weeks. (K and L) Serum IL-1Ra (K) and SAP (L) in hNLRP3, D305N, and Y572C mice. (M and N) Peritoneal macrophages were collected from mice of the indicated genotype to assess inflammasome responses to LPS. (M) Caspase-1 enzymatic activity in supernatant was quantified using a luminescence assay that reports relative light units (RLU) following 2 hours of LPS stimulation. (N) IL-1β levels in the same culture supernatants were measured by ELISA. hNLRP3 peritoneal macrophages stimulated with LPS and ATP served as positive controls. Vehicle-treated peritoneal macrophages from mice of each CAPS genotype and LPS-exposed macrophages from D305N Casp1/11-null mice, and from hNLRP3 mice served as specificity controls. Sample size (n) is indicated in each panel. Bars represent mean ± SEM. Asterisks indicate significance for comparisons among each CAPS line and hNLRP3 and between CAPS genotypes as determined by 2-tailed unpaired t test (*P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001), with additional comparisons in Supplemental Table 5. Red daggers denote P values derived from identical comparisons assessed by 1-way ANOVA with Tukey-Kramer post-test (A–L), 2-way ANOVA (M), or 1-way ANOVA (N), with Dunnett’s post-test.
