Ultrasound-targeted microbubble cavitation enhances anti–PD-L1 therapy in TNBC via eNOS-mediated reoxygenation
Zhiyu Zhao, Li Ba, Siwei Li, Jianxin Wang, Yuzhou Luo, Sihan Wang, Yan Jin, Changjun Wu
Zhiyu Zhao, Li Ba, Siwei Li, Jianxin Wang, Yuzhou Luo, Sihan Wang, Yan Jin, Changjun Wu
View: Text | PDF
Research Article Immunology Oncology Vascular biology

Ultrasound-targeted microbubble cavitation enhances anti–PD-L1 therapy in TNBC via eNOS-mediated reoxygenation

  • Text
  • PDF
Abstract

Hypoxia critically restricts the effectiveness of immunotherapy in triple-negative breast cancer (TNBC). Comprehensive bioinformatics analyses have demonstrated that highly hypoxic TNBC tumors exhibited elevated T cell exhaustion, increased immune checkpoint molecule expression, and diminished responsiveness to immune checkpoint blockade (ICB). Consequently, strategies aimed at alleviating tumor hypoxia may effectively augment ICB therapy. Although ultrasound-targeted microbubble cavitation (UTMC) has been shown to reduce tumor hypoxia, the precise molecular mechanisms remain unclear. Here, we provide evidence that UTMC activated endothelial nitric oxide synthase (eNOS) through G protein–coupled signaling, resembling pathways induced by fluid shear stress. UTMC-induced eNOS activation was largely Ca2+ dependent and resulted in increased nitric oxide production. Enhanced nitric oxide generation was associated with improved tumor perfusion and reduced hypoxia. Combining UTMC with anti–PD-L1 therapy markedly improved the tumor immune microenvironment, characterized by increased CD8+ T cell infiltration, reduced T cell exhaustion, diminished regulatory T cell infiltration, increased macrophage polarization from an M2 to M1 phenotype, and elevated production of proinflammatory cytokines. Collectively, our findings identified UTMC as a promising adjunctive therapeutic approach to mitigate hypoxia and enhance the efficacy of anti–PD-L1 immunotherapy in TNBC. These results support further translational evaluation of UTMC-based combination strategies in hypoxic TNBC.

Authors

Zhiyu Zhao, Li Ba, Siwei Li, Jianxin Wang, Yuzhou Luo, Sihan Wang, Yan Jin, Changjun Wu

×

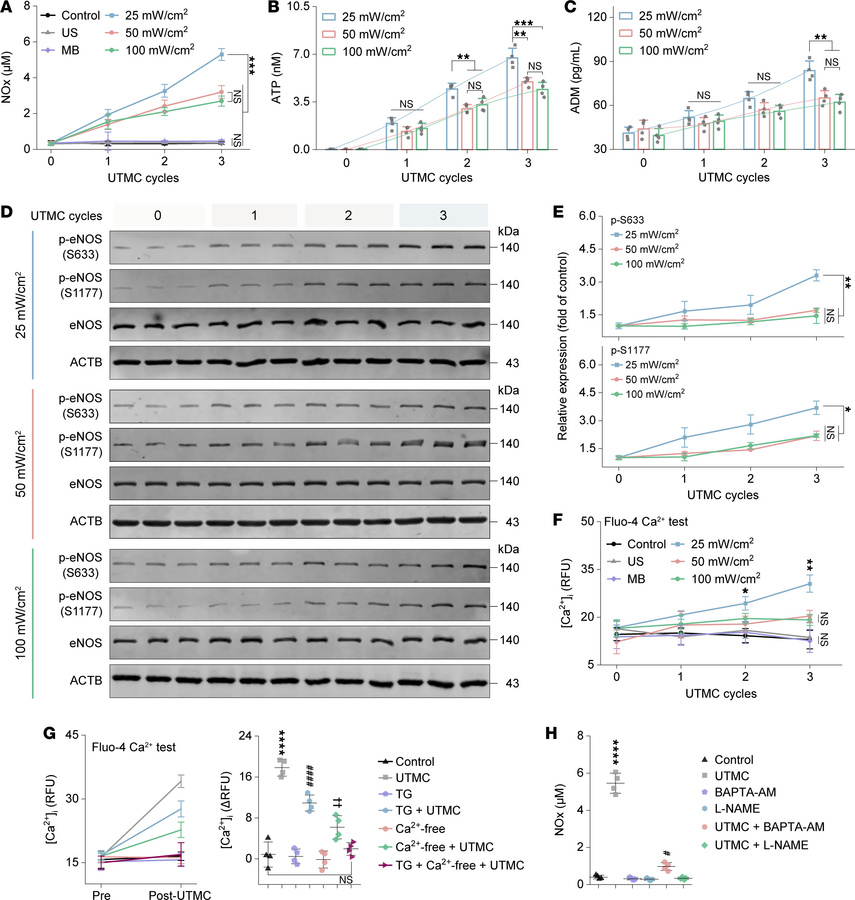

Figure 3

eNOS activation induced by mechanical effects of UTMC.

Options: View larger image (or click on image) Download as PowerPoint
eNOS activation induced by mechanical effects of UTMC.
(A) Concentration...
(A) Concentration of NOx in culture supernatants after UTMC treatment at different cycles (n = 4 per group). (B and C) Concentration of ATP and ADM in culture supernatants following UTMC treatment with different exposure cycles (n = 4 per group). (D and E) Western blot bands and corresponding quantitative analysis illustrating the phosphorylation status of eNOS in HUVECs following UTMC treatment with different exposure cycles (n = 3 per group). The same samples were run in a separate gel for detecting phosphorylated eNOS. (F) Fluo-4–based quantification of cytosolic Ca2+ following UTMC treatment with different exposure cycles. RFU of Fluo-4 were recorded after each UTMC cycle (n = 4 per group). (G) Fluo-4–based quantification of cytosolic Ca2+ dynamics following 3 UTMC cycles. Left: Relative RFU of Fluo-4 recorded before (Pre) and after UTMC stimulation (Post-UTMC). Right: Corresponding changes in signal quantified as ΔRFU (Post – Pre, n = 4 per group). ****P < 0.0001 for UTMC group vs. other groups. ####P < 0.0001 for TG + UTMC group vs. Control group. ††P < 0.01 for Ca2+-free + UTMC group vs. Control group. (H) NOx concentration in culture supernatants following the indicated treatments and 3 UTMC cycles (n = 4 per group). ****P < 0.0001 for UTMC group vs. other groups. #P < 0.05 for UTMC + BAPTA-AM group vs. other groups’ expected UTMC. Statistical analyses were performed using 1-way ANOVA followed by Tukey’s post hoc test. NS, no significance.
