Ultrasound-targeted microbubble cavitation enhances anti–PD-L1 therapy in TNBC via eNOS-mediated reoxygenation
Zhiyu Zhao, Li Ba, Siwei Li, Jianxin Wang, Yuzhou Luo, Sihan Wang, Yan Jin, Changjun Wu
Zhiyu Zhao, Li Ba, Siwei Li, Jianxin Wang, Yuzhou Luo, Sihan Wang, Yan Jin, Changjun Wu
View: Text | PDF
Research Article Immunology Oncology Vascular biology

Ultrasound-targeted microbubble cavitation enhances anti–PD-L1 therapy in TNBC via eNOS-mediated reoxygenation

  • Text
  • PDF
Abstract

Hypoxia critically restricts the effectiveness of immunotherapy in triple-negative breast cancer (TNBC). Comprehensive bioinformatics analyses have demonstrated that highly hypoxic TNBC tumors exhibited elevated T cell exhaustion, increased immune checkpoint molecule expression, and diminished responsiveness to immune checkpoint blockade (ICB). Consequently, strategies aimed at alleviating tumor hypoxia may effectively augment ICB therapy. Although ultrasound-targeted microbubble cavitation (UTMC) has been shown to reduce tumor hypoxia, the precise molecular mechanisms remain unclear. Here, we provide evidence that UTMC activated endothelial nitric oxide synthase (eNOS) through G protein–coupled signaling, resembling pathways induced by fluid shear stress. UTMC-induced eNOS activation was largely Ca2+ dependent and resulted in increased nitric oxide production. Enhanced nitric oxide generation was associated with improved tumor perfusion and reduced hypoxia. Combining UTMC with anti–PD-L1 therapy markedly improved the tumor immune microenvironment, characterized by increased CD8+ T cell infiltration, reduced T cell exhaustion, diminished regulatory T cell infiltration, increased macrophage polarization from an M2 to M1 phenotype, and elevated production of proinflammatory cytokines. Collectively, our findings identified UTMC as a promising adjunctive therapeutic approach to mitigate hypoxia and enhance the efficacy of anti–PD-L1 immunotherapy in TNBC. These results support further translational evaluation of UTMC-based combination strategies in hypoxic TNBC.

Authors

Zhiyu Zhao, Li Ba, Siwei Li, Jianxin Wang, Yuzhou Luo, Sihan Wang, Yan Jin, Changjun Wu

×

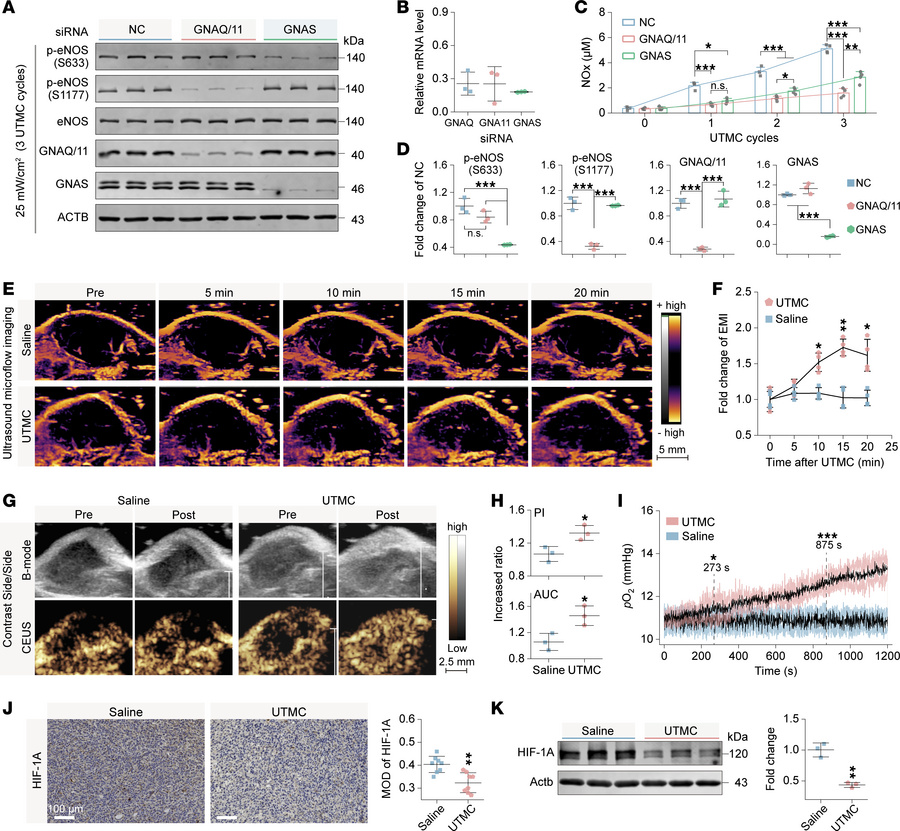

Figure 4

Effects of G protein knockdown on eNOS activation and tumor perfusion improvement by UTMC.

Options: View larger image (or click on image) Download as PowerPoint
Effects of G protein knockdown on eNOS activation and tumor perfusion im...
(A and D) Western blot bands and corresponding quantitative analysis of siRNA-mediated G protein knockdown and the subsequent phosphorylation status of eNOS (n = 3 per group). NC, negative control. (B) Relative mRNA expression levels after siRNA transfection (n = 3 per group). (C) Measurement of NOx concentrations in the culture supernatants following G protein knockdown (n = 4 per group). (E and F) Representative ultrasound microflow imaging (MFI) of tumors in 4T1 tumor–bearing mice and corresponding temporal curves of EMI from 4 independent experiments. (G) Representative B-mode and CEUS images of the same tumors before and after treatment from 3 independent experiments. (H) Quantification of the relative increase in peak intensity (PI) and AUC of the same tumor after treatment, calculated as posttreatment/pretreatment (n = 3 per group). (I) pO2 measurement of tumor tissues for 20 minutes after treatment (n = 3 per group). Shaded regions indicate SD, and bold lines represent mean values. The first statistically significant difference between groups was observed at approximately 273 seconds, and group differences remained significant thereafter from approximately 875 seconds onward. (J) Representative immunohistochemical images of HIF-1A and corresponding quantitative analysis of mean optical density (MOD) in tumor tissues harvested 12 hours after treatment (scale bars: 100 μm). Representative images from 4 independent tumors per group are shown, with 2 tissue section analyzed from each tumor. (K) Western blot bands and corresponding quantitative analysis for HIF-1A in tumor tissues harvested 12 hours after treatment (n = 3 per group). The same samples were run in a separate gel for Western blotting. Statistical analyses were performed using 1-way ANOVA followed by Tukey’s post hoc test (C and D), 2-way ANOVA followed by Šidák’s post hoc test (F and I), or unpaired 2-tailed Student’s t test (H, J, and K). NS, no significance. *P < 0.05, **P < 0.01, ***P < 0.001.
